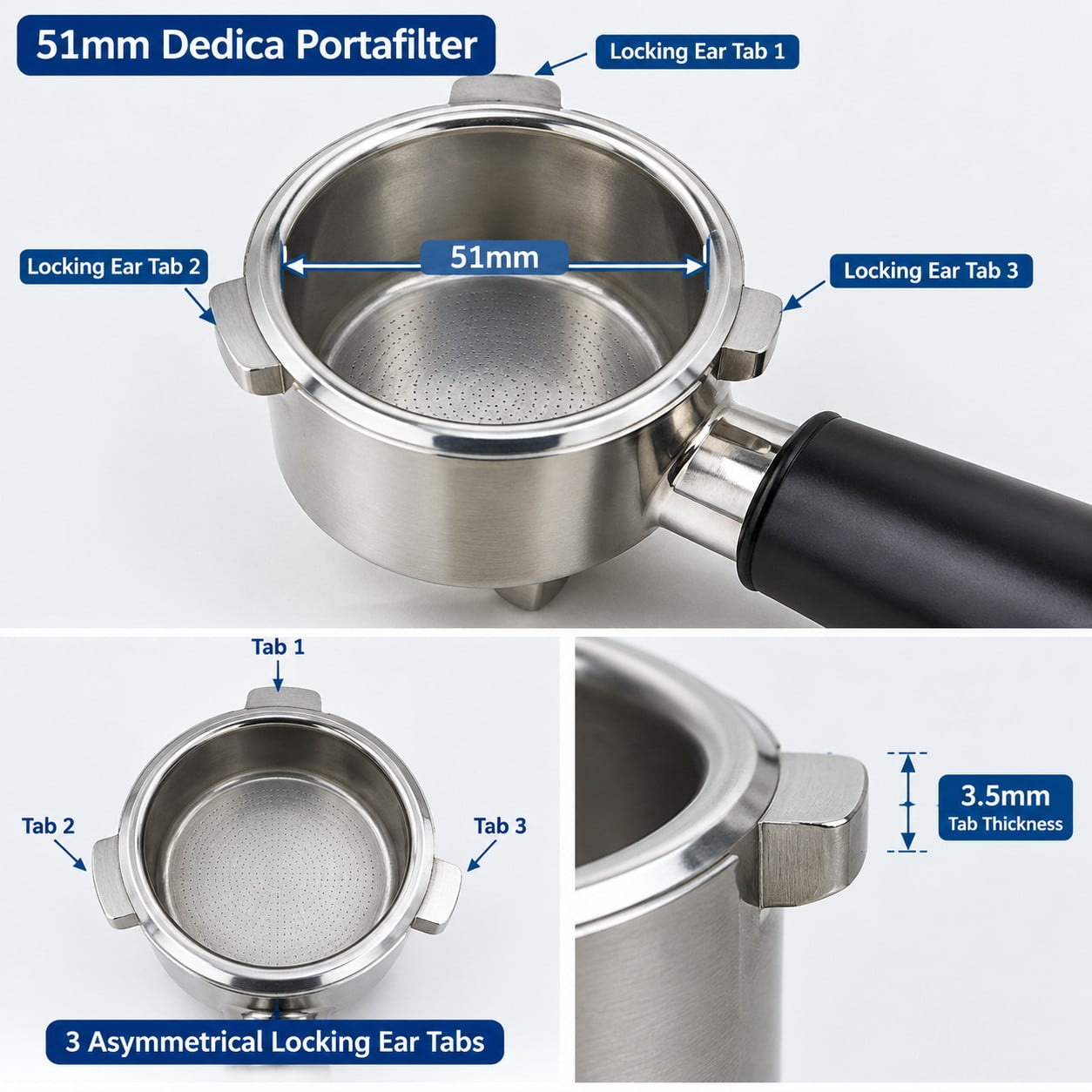

The DeLonghi Dedica EC680, EC685, and EC885 use a 51 mm 3-ear portafilter with asymmetrical tab positioning and a 3.5 mm ear thickness. Commercial 58 mm portafilters and generic 2-ear 51 mm portafilters (like those for La Pavoni or E61) will not engage the Dedica group collar.
Ear Tab Geometry and Locking Angle
Many generic 51 mm portafilters sold online feature 2 locking ears or 3 symmetrically spaced ears with 4.0 mm tab thickness. If the tabs are too thick, the handle will jam at the 7 o’clock angle and refuse to rotate forward to the 6 o’clock lock position. Forcing an incompatible portafilter cracks the internal aluminum group collar tabs. Verify that the bottomless portafilter is specifically machined for the Dedica 3-ear pattern.
| Portafilter Type | Ear Count & Thickness | Dedica Fitment Status | Common Failure Mode |
|---|---|---|---|
| Dedicated Dedica 51 mm | 3 ears, 3.5 mm thickness | Locks smoothly to 6 o’clock | None; correct mechanical match |
| Generic 51 mm 2-Ear | 2 opposite ears (180°) | Will not engage collar | Does not latch; completely incompatible |
| Thick-Tab 51 mm 3-Ear | 3 ears, 4.2 mm thickness | Jams early at 7 o’clock | Damages group collar if forced |
| Stock Pressurized Handle | 3 ears with plastic bottom spout | Factory fitment | Spouts hide channeling and retain old oils |
Removing the Pressurized Basket Trap

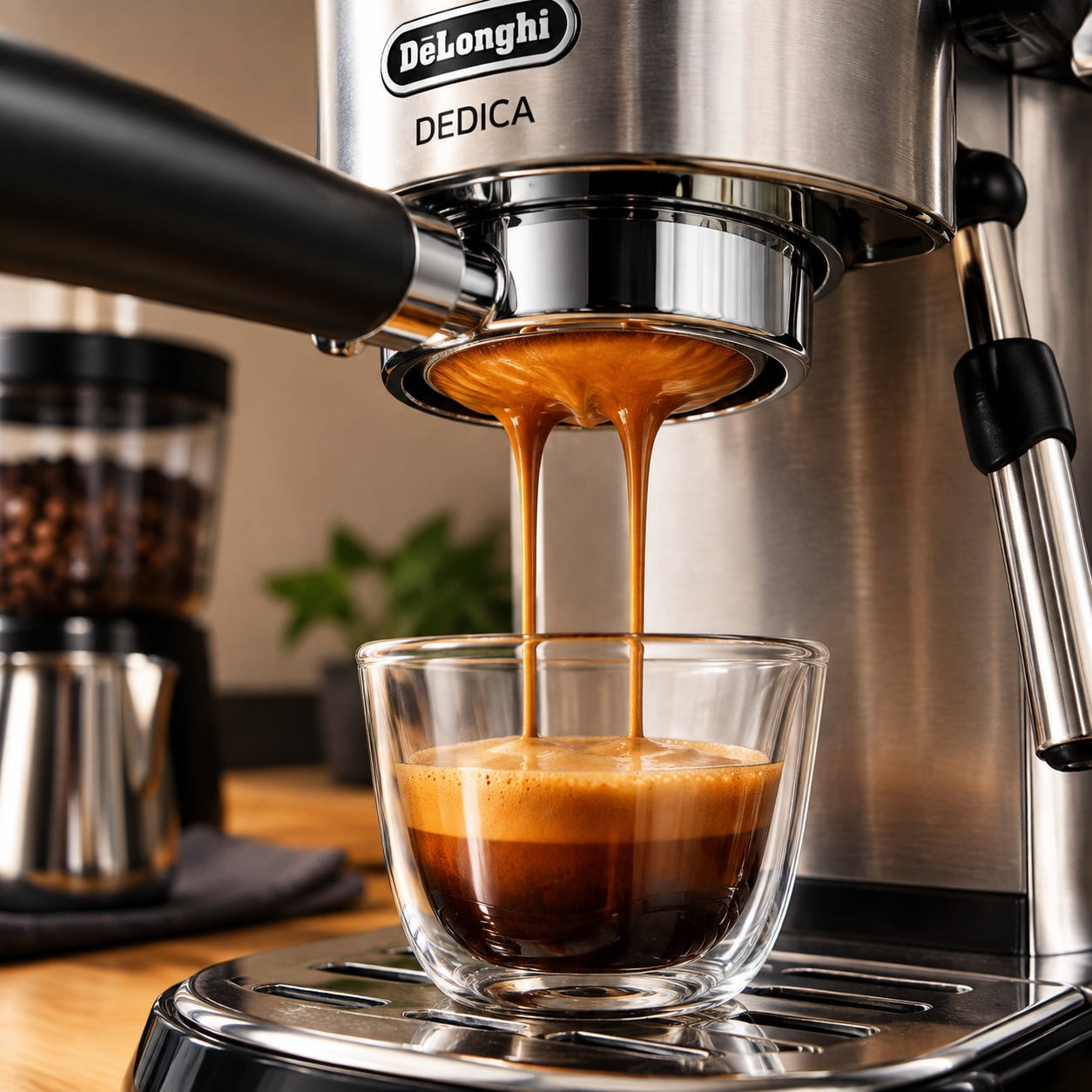

The stock Dedica portafilter relies on a pressurized double-wall basket and an internal plastic funnel. This design forces coffee through a single pinhole to artificially froth crema. A bottomless portafilter allows you to run a true single-wall unpressurized precision basket. However, unpressurized baskets demand an espresso-capable burr grinder and a dedicated 51 mm spring-loaded tamper to prevent gushing shots.
Pressure Dynamics on Dedica Extractions
Because the Dedica lacks an adjustable over-pressure valve (OPV), its small vibration pump pushes upward of 15 bar against fine coffee beds. Level puck distribution with a magnetic distributor in 51 mm sizing prevents high-pressure water from punching channeling blowouts through the puck edges.
Frequently Asked Questions
What size tamper does the DeLonghi Dedica portafilter use?
The Dedica uses a 51 mm tamper. Standard 53 mm and 58 mm tampers will not fit inside the basket.
Can you use an unpressurized basket in the stock Dedica portafilter?
Yes, but you must unscrew and remove the inner black plastic insert to allow the deeper single-wall basket to seat fully.
Why does my bottomless portafilter leak from the sides on the Dedica?
Side leaks happen if the ear tabs are too thin to compress the group gasket, or if the rubber group gasket has hardened and cracked.
Does the Dedica EC680 share the same portafilter as the EC685?
Yes. The EC680, EC685, EC785, and Arte EC885 all share identical 51 mm 3-ear group head dimensions.
Why is my bottomless shot on the Dedica running in 10 seconds?
Unpressurized baskets need a much finer grind than pre-ground grocery coffee. Grind finer until the shot runs 25 to 30 seconds for a 1:2 ratio.
