The hot-water dial looks tempting when you see someone use it to shape a shot. But the stock Breville Dual Boiler already has adjustable pre-infusion. Is opening the machine worth the extra control?
On a BES920, the community “Slayer mod” routes brew water through the existing hot-water valve. The dial can then restrict flow during extraction. It gives you a control that stock pre-infusion does not, but the common version changes or removes the normal hot-water outlet. Check what you want to change before choosing a modification.
What can the stock BES920 do without a mod?
The BES920 already lets you adjust low-pressure pre-infusion. Breville's BES920 instruction manual describes programmable pre-infusion duration and power. You can also hold the MANUAL button to keep the machine in the low-pressure phase, then release it to move to full pump pressure.
Photo: Coffee Rank (original, CC BY 2.0). The pictured machine's production revision is not verified.
Try that control before you pay for parts or open the case. Use the same coffee, dose, grind setting and basket for a few shots. Change only the pre-infusion setting and note what happens to the start of the flow and the taste. If a gentler start was all you wanted, the stock machine may already cover your goal.
Pre-infusion has a limit. After the machine moves to its full-pressure phase, you cannot use the stock pre-infusion setting as a continuously adjustable flow dial. That is the extra control the community modification tries to add.

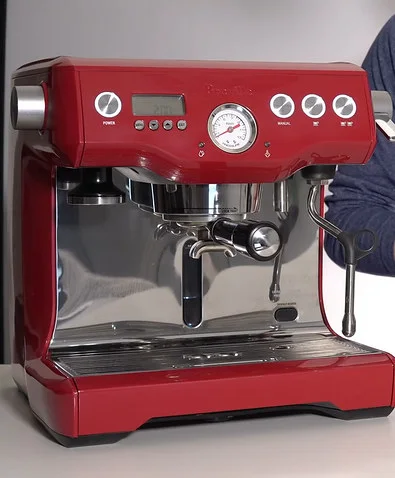

The manual also identifies the hot-water dial as the control for the separate hot-water outlet. On an unmodified machine, that dial is not a brew-flow control. Keep those two stock functions separate when reading forum advice.
What do owners mean by the “Slayer mod”?
Owners use “Slayer mod” as a community name for a brew-path change on the Breville or Sage Dual Boiler. In the commonly discussed version, brew water passes through the machine's existing hot-water valve. Turning its dial changes the water available to the coffee puck while the pump runs. The original Home-Barista modification discussion documents that version and other approaches.
Photo: Coffee Rank (original, CC BY 2.0); cropped. This is a stock exterior, not a photograph of the internal modification.
The name can mislead. It does not turn a BES920 into a Slayer machine, and it is not one universal kit with one installation procedure. Some owners discuss a different modification that bleeds water through the hot-water outlet. Others discuss changes to a switch or pump. Ask which water path a guide describes before comparing results or following photos.
An owner on Reddit's espresso forum describes using the hot-water valve after rerouting the brew line. That owner can describe how the modified machine behaves, but the account cannot establish compatibility with your production revision.

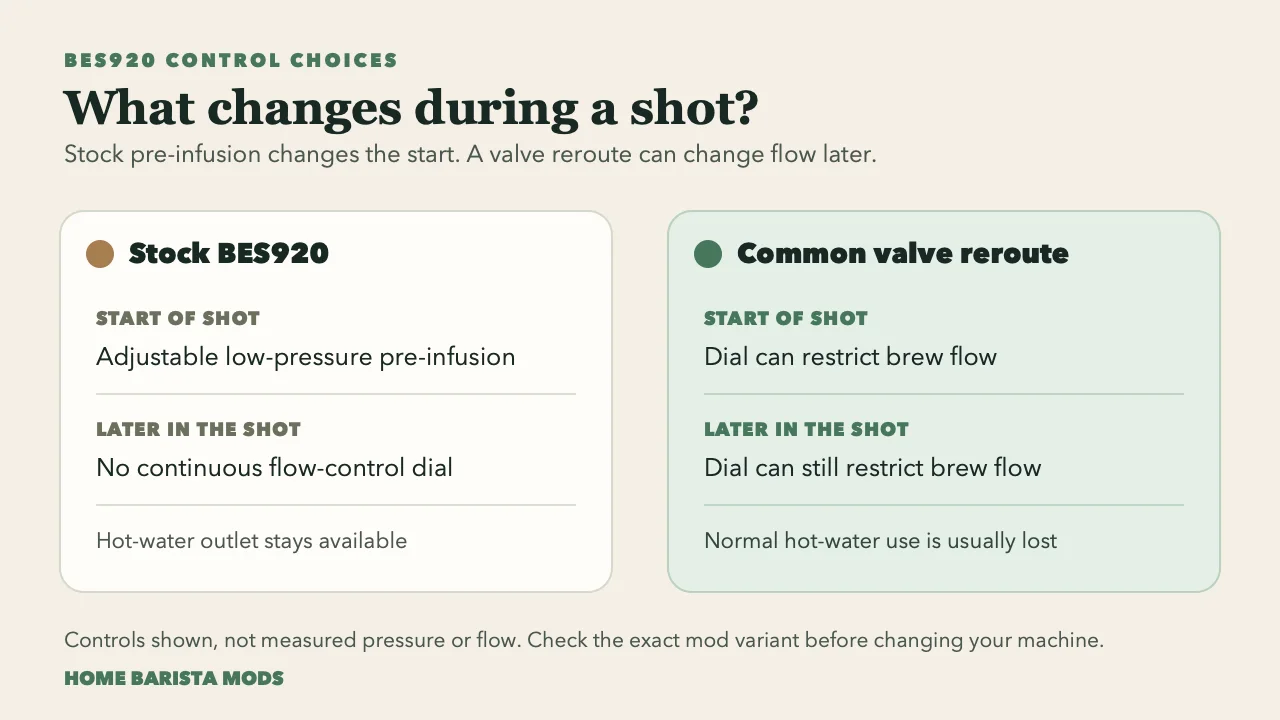

How is manual flow control different from pre-infusion?
Pre-infusion changes the start of a shot. A valve in the brew path can also change the flow later, while coffee is being extracted. You may use it to start slowly, increase flow, then reduce it again. The result still depends on the puck, grind and coffee. The valve does not choose a good recipe for you.
Photo: Schill, CC BY 2.0. This is an extraction example, not a BES920 test.
| Your goal | Stock BES920 | Common valve reroute |
|---|---|---|
| Give the puck a gentle start | Programmable low-pressure pre-infusion | Manual valve position can restrict flow |
| Change control during the main extraction | Limited to the stock extraction controls | Adjust the hot-water dial while the pump runs |
| Keep the normal hot-water outlet | Yes | Common reroute gives up normal outlet use; verify the exact variant |
| Follow a factory procedure | Yes, for stock controls in the manual | No; the reroute is a community modification |
Flow and pressure are related, but they are different readings. A pressure gauge does not tell you the exact amount of water passing through the puck. A blind basket makes this easier to misunderstand: with no coffee flowing out, pressure can rise even when a valve is restricting incoming water. Judge a real shot with the coffee flow and a scale as well as the machine's gauge. Do not claim a taste improvement from a gauge reading alone.
A modded owner reported that the stock dial felt awkward for fine changes outside pre-infusion. If you want precise profiles by hand, test how much control you can comfortably repeat.
What happens to the hot-water outlet?
In the common reroute, the hot-water valve becomes part of the brew path. Owners report losing the normal hot-water outlet. That matters if you use the spout for Americanos, cup warming or cleaning. A community discussion of daily use calls out this workflow change directly.
Before changing anything, count how often you use that outlet in a normal week. If it is part of every Americano, a manual flow dial also means changing how you prepare that drink. A kettle may solve the hot-water need, but it is another step at the counter.
Do not assume every page titled “BDB flow-control mod” sacrifices the outlet in the same way. Some discussions describe bleeding water through the outlet instead of routing all brew water through its valve. That is a different behavior. The benefit, water use and shot control should be evaluated for the version you are considering.
Which machine details must match the guide?

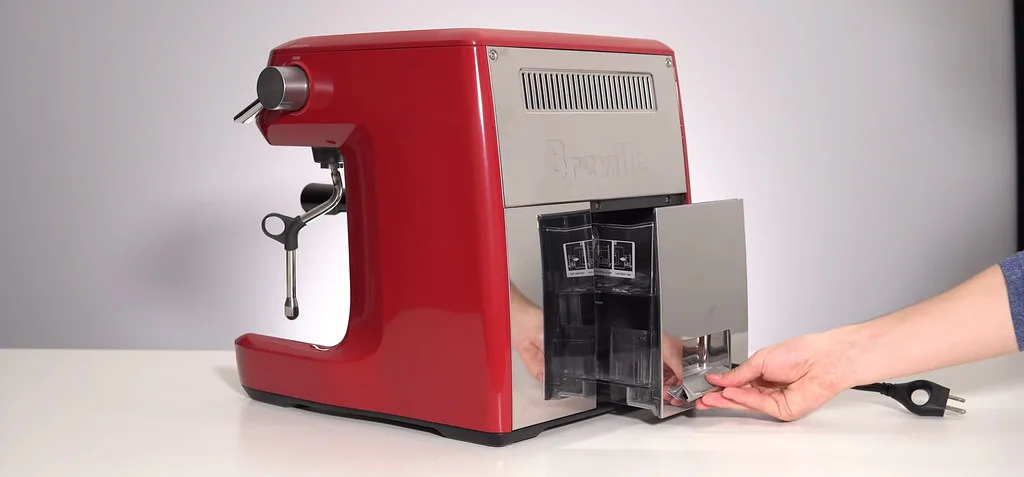

Start with the label on your own machine. Record the model code, country, voltage and any production or service revision you can confirm. Then check that the guide's machine matches those details. A post about a BES900, a BES920 and another Sage-branded model may use the same shorthand while describing different hardware histories.
Photo: Coffee Rank (original, CC BY 2.0). The photo does not show a readable model label; check the label on your own machine.
The Breville Dual Boiler support page is the right starting point for the current US BES920 manual and support route. For UK or EU machines, use the manual for your region. Do not turn a US owner photo into an installation map for a different revision.
If you bought the machine used, our used Dual Boiler checklist covers the tests to run before you consider a modification.
Do not follow a tube-routing guide unless it matches your machine, includes clear real photographs of that revision and explains how to check the work before the machine is powered again. If you cannot establish those details, stop at the decision stage and ask a qualified service technician.
When should you leave the machine stock?
Leave it stock while you are still learning its pre-infusion menu. If shots vary a lot without touching that menu, stabilize the grinder, dose and puck preparation first. Extra flow control adds another variable; it will not diagnose an inconsistent grind.
Photo: markolaz, CC BY 2.0. The machine in this photograph is not a BES920.
Keep the machine closed if it already leaks, trips power, behaves oddly or needs service. A modification makes fault-finding harder. For a steam leak, start with the Dual Boiler steam-leak guide. For other symptoms, use the diagnosis guide. The Breville and Sage machine guide helps you avoid borrowing instructions from a Barista Express.
Breville's manual directs users to its support channel for servicing beyond the described care and cleaning. Its US warranty terms exclude damage to the extent caused by unauthorized modification or repair. Check the terms for your country and machine before opening it. Coverage depends on those terms and on what caused the damage.
How do you make the decision without opening the case?
Run one week with the stock machine and write down what you actually want to change. Use the manual's pre-infusion controls first. Keep the same coffee and record dose, output, time and a short taste note. You are looking for a repeatable limitation, not a perfect shot from a new dial.
Then answer three questions:
1. Do you need flow adjustment after the pre-infusion phase, or only a gentler start? 2. How often do you use the hot-water outlet now? 3. Do you have a guide and real images for your exact model and revision, plus a competent person to check the work?
If the answer to the first question is “only a gentler start,” keep using the stock controls. If you want manual flow during the main extraction and can accept the outlet trade-off, read the original community documentation and confirm your machine version. If the guide or technical checks do not match your unit, wait. A good mod is still a poor decision when you cannot verify the work.
FAQ
Does the Breville Dual Boiler already have pre-infusion?
Yes. The BES920 manual documents adjustable low-pressure pre-infusion. The MANUAL button also lets you hold that phase before the machine moves to full pump pressure. Try these controls before considering internal changes.
Does the Slayer mod add a rotary pump?
No. The common “Slayer mod” reroutes brew water through the existing hot-water valve. A rotary-pump conversion is a separate community modification. Some owner photos show machines with both changes, which can make the two look like one project.
Is the mod reversible?
Some owners describe their particular reroute as reversible. That does not prove every variant or every prior installation can be restored without inspection. Check the exact work already done to your machine and the parts that were changed.
Will the mod make my espresso taste better?
There is no guaranteed taste gain. It gives you another way to control water delivery during a shot. You still need a consistent grinder, coffee and puck preparation, and you need to learn when a change in flow helps the coffee you are using.
References
Hero photo: Coffee Rank (original, CC BY 2.0); cropped to 16:9.
- Breville BES920 instruction manual - Breville Dual Boiler support - Breville US warranty - Home-Barista: Breville Dual Boiler Mods and Maintenance - Reddit: an owner on the flow-control trade-off
If you want a calmer start to the shot, try the controls already on your BES920. Save the internal mod for a specific flow-control goal and a machine you can identify and service with confidence.
