DeLonghi Dedica EC685 mods: can a cheap machine make real espresso?
Turning a budget Dedica into a real espresso machine - 51mm non-pressurized basket, Rancilio steam wand transplant, preinfusion. The cheapest real-espresso on-ramp.
The DeLonghi Dedica EC685 is a compact Thermoblock machine built around an accessible stock workflow. Moving from the pressurized basket to a compatible non-pressurized basket changes the job of the grinder and puck preparation; community pressure-control and steam-wand modifications are separate technical projects.
De'Longhi lists a 15-bar pump specification for the EC685. That number is a pump rating, not proof that coffee sees 15 bar throughout a flowing shot. This guide separates manufacturer specifications from community measurements and modifications.
EC680, EC685, EC785 and EC885 are related Dedica-family machines, but parts, internal revisions and regional models should be checked individually before using a compatibility or modification guide.
Why does stock Dedica espresso taste flat?
Stock Dedica operation is designed to be forgiving. The pressurized-basket workflow reduces the grinder precision required from the user, while the compact Thermoblock and stock milk system prioritize a small footprint and simple operation.
Coarser grind: less resistance, so water rushes through and pressure at the puck stays low, whatever the pump is rated for.
If you move to a non-pressurized basket, grind quality and puck preparation matter much more. De'Longhi's 15-bar pump specification should not be rewritten as a measured puck-pressure claim, and this page should not state that every EC685 revision lacks an OPV without revision-specific technical evidence.
Key takeaway: Treat the 15-bar figure as a pump specification. Diagnose the actual workflow before deciding that pressure hardware needs changing.

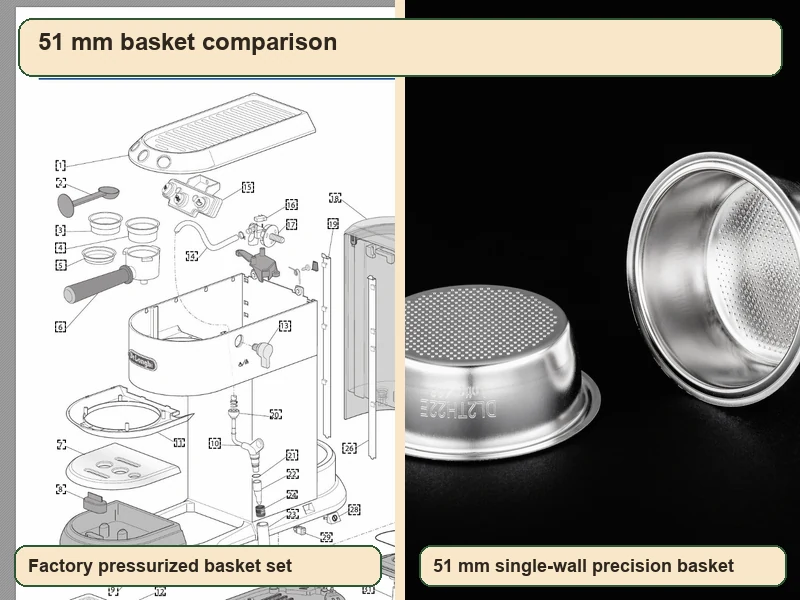

Should I swap the pressurized basket?
Pressurized: a second wall with one small exit makes most of the resistance, so the grind matters less.
Single-wall: water drains through many holes, so the coffee bed has to make the resistance. Grind, dose and prep matter more.

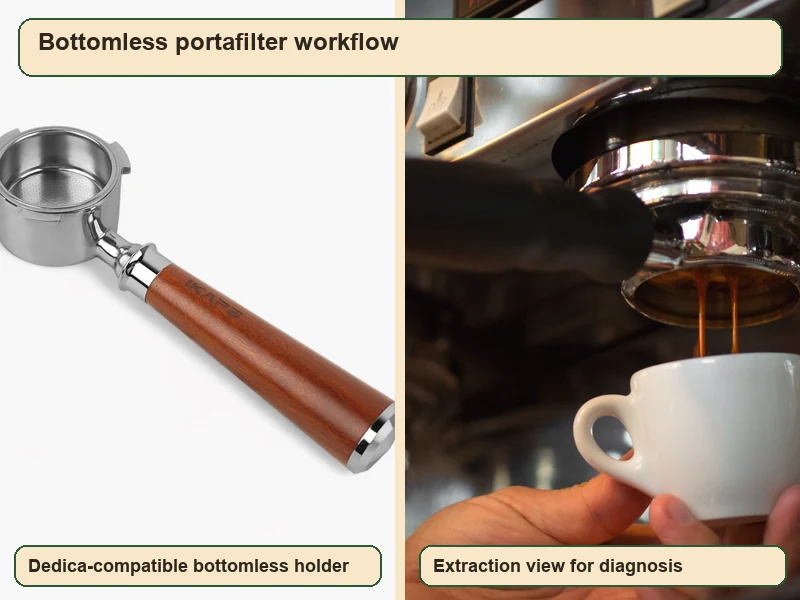

A compatible non-pressurized basket removes much of the flow restriction created by a pressurized basket, so the coffee bed, grinder and puck preparation become more important to shot behavior. That can make a bottomless portafilter useful as a visual diagnostic tool, but fit must be confirmed for the exact Dedica model and basket.
Do not infer brew pressure from the pump's 15-bar specification. If you want to compare compatible baskets or portafilters, use the gear guides rather than an old self-fulfillment product listing.
Key takeaway: A non-pressurized basket is a workflow change: grinder quality, dose, distribution and fit matter more than a single pump-pressure number.
What grind size fits the 51mm basket?
Once you move from the stock pressurized workflow to a compatible non-pressurized basket, the grinder becomes much more important. You need fine, repeatable espresso adjustment—not a specific brand ranking.
Change one variable at a time and keep the rest fixed. Set the dose from the basket's real capacity and headspace.
Use the basket's actual capacity and headspace to set dose. Keep grind, dose, distribution and tamping consistent while changing one variable at a time. A bottomless portafilter can make uneven flow easier to see, but spraying does not prove one fixed dose, one tamp force or one grinder model is required.
Key takeaway: choose an espresso-capable grinder with fine repeatable adjustment and dial the exact coffee/basket combination; do not force every Dedica into a 16–18 g rule or a three-model “best grinder” list.

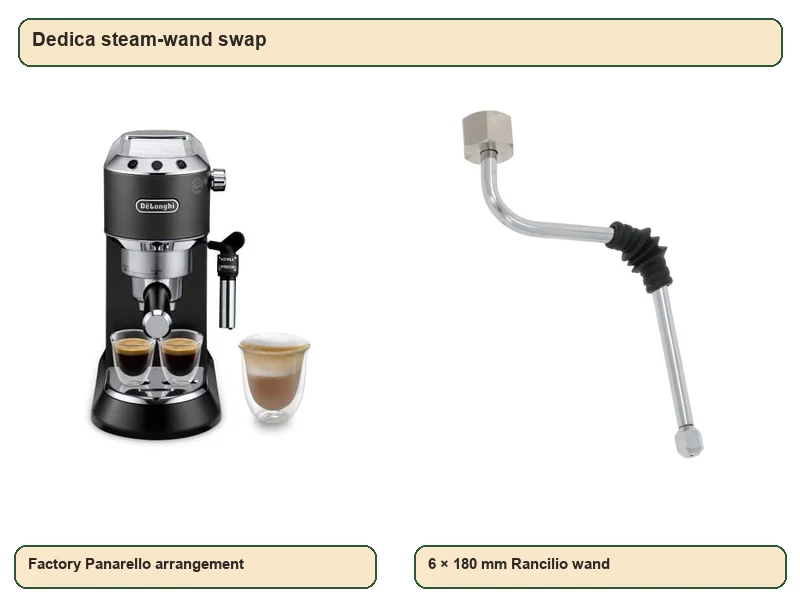

Is a Rancilio steam-wand transplant worth considering?
Dedica owners use several milk-workflow approaches, from learning the stock frothing system to removing the outer sleeve or installing a different steam wand. A Rancilio-style wand transplant is one community modification path, not the only route to better milk texture.

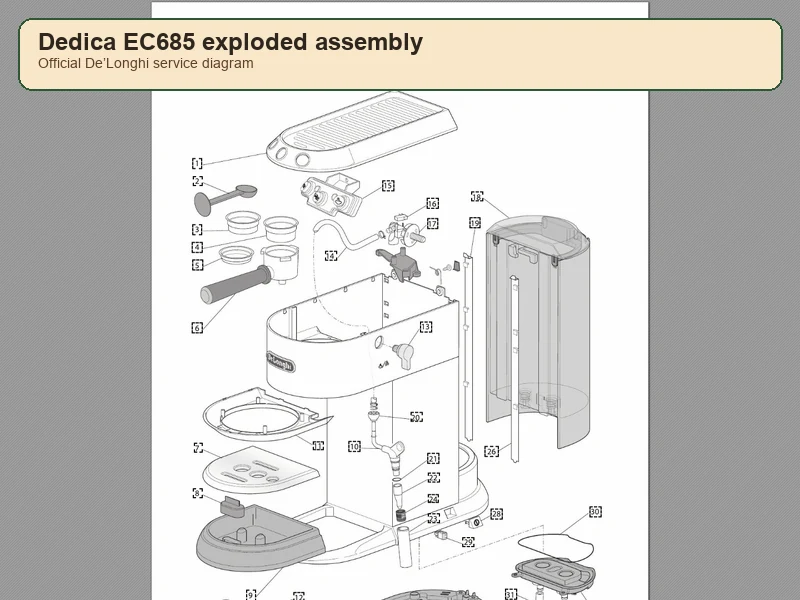

Because the transplant requires opening the machine and changing internal fittings, a general guide should not publish screw counts, hose-routing steps or improvised fitting instructions without exact model/revision evidence and real technical photographs.
Key takeaway: Treat the Rancilio-wand transplant as a model-specific community modification, not a universal prerequisite for latte-art milk.
What do Dedica owners mean by a dimmer mod?
Community modders use pump-control devices and pressure measurement to experiment with flow and pressure on Dedica-family machines. That is different from De'Longhi's stock 15-bar pump specification and should not be presented as an official 9-bar conversion. The exact electrical path, pump type and safe control method must be verified for the machine revision before any mains-voltage work is attempted.
Key takeaway: A dimmer is an experimental community pressure-control path. Do not follow generic wire-color, cut-and-splice or drilling instructions from a model-agnostic guide.

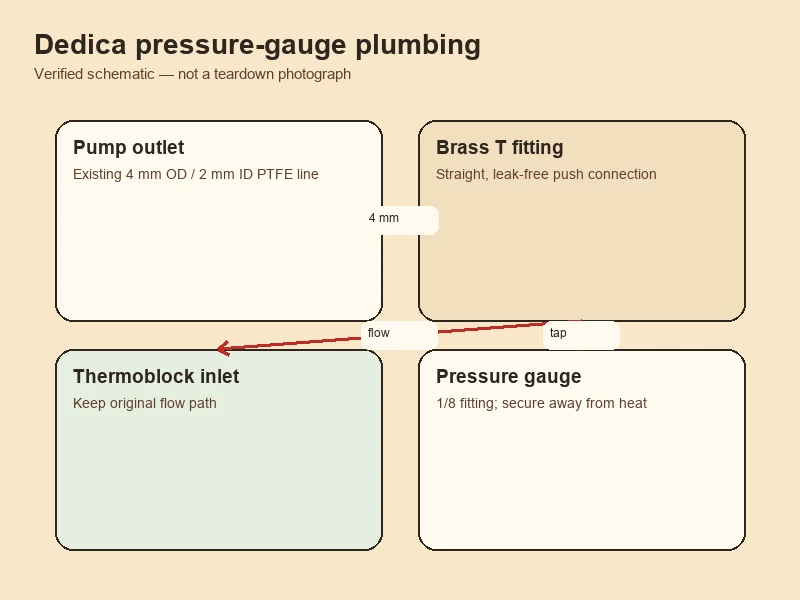

Can I measure pressure on an EC685?
Concept, not a parts layout: the gauge reads what pump output and puck resistance create together, then falls back when the shot stops.
Some community builds add a pressure gauge so changes are measured instead of inferred from pump sound or a dimmer position. A safe installation depends on the exact tubing, fittings, pressure rating and sealing method used by that machine revision.
This general guide should not prescribe a universal tube diameter, T-fitting, screw size or fixed number of PTFE-tape wraps without a verified parts diagram and installation source.
Key takeaway: Pressure feedback is useful, but the hydraulic installation needs a revision-specific parts list and leak-test procedure.

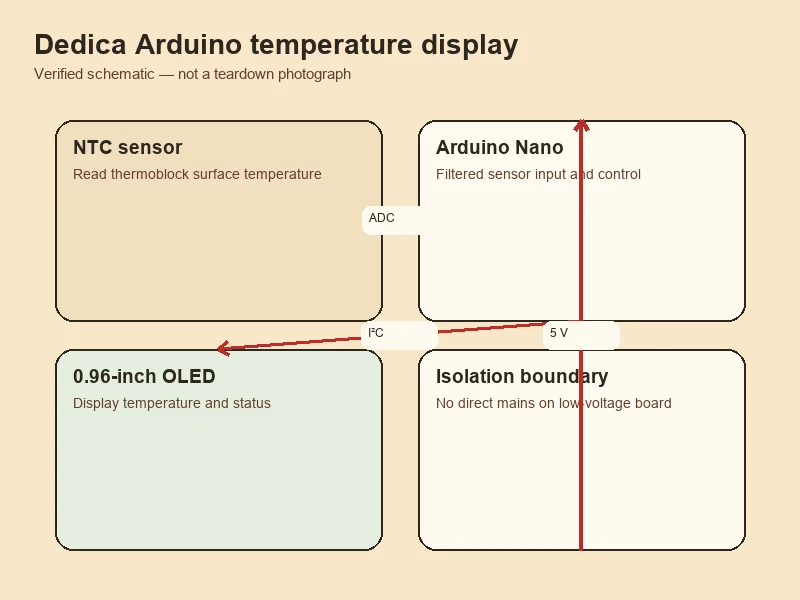

What about Arduino or sensor-based Dedica projects?
Open-source builders have experimented with microcontrollers, temperature sensing, pressure sensing and displays on Dedica-family machines. These projects can be valuable research references, but component values, sensor threads, wiring pins, supply voltages and hydraulic fittings are project-specific. HBM should not publish a generic Arduino wiring table as if it were a verified EC685 installation.
If a future HBM guide covers one of these projects, it should name the exact repository/version, machine revision, power source, sensors, isolation method and test procedure—and use real technical images of that build.
Key takeaway: Digital monitoring/control belongs in a separate project-specific guide, not as unsourced copy-and-paste wiring inside the broad Dedica owner.

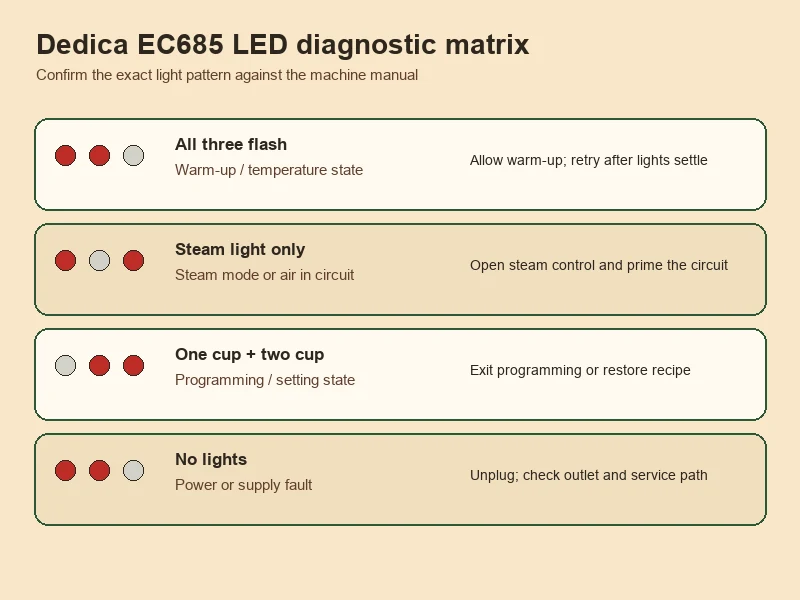

How do I read the Dedica LED fault codes?
Do not use a generic HBM blink-code table to diagnose a thermistor, thermal fuse, flowmeter or scale condition. Light behavior can depend on model state, setup, steam mode, settings and the exact fault.
Write the state down first, then check the EC685 manual or De'Longhi support for that state. A light pattern is a clue, not proof of a failed part.
Record which lights are on/blinking, whether the machine is hot or cold, whether water flows with the portafilter removed, and what happened immediately before the alert. Then use the EC685 manual/support instructions for that state.
Key takeaway: use the exact light pattern as a clue, not as proof of a component failure.
How do I prime a dry pump on the Dedica?
If the machine has no water flow after the tank has been emptied or removed, first reseat and fill the tank and follow De'Longhi's current first-use / hot-water setup procedure for the EC685. Make sure the tank is seated correctly and that you are not testing flow against an over-restrictive coffee puck.
The documented first checks, one at a time. If flow doesn't return, stop and diagnose the water path rather than running a dry pump.
HBM does not claim that “nine times out of ten” every no-flow event is the same PTFE-line airlock, and this overview does not prescribe a fixed number of seconds to run a dry vibration pump.
If correct tank seating and the documented priming/setup process do not restore flow, stop and diagnose the water path rather than repeatedly running a dry pump.
How long does a Dedica last with mods?
HBM does not have a controlled lifespan dataset for stock or modified EC685 machines, so this page should not promise a number of years or prescribe an annual internal-inspection schedule.
Modify only to solve a defined problem, keep a way to roll back, and judge long-term ownership by condition.
Service life depends on use, water, maintenance, operating temperature, modification quality, failures and parts availability. Every added dimmer, gauge, sensor or custom fitting also adds another component and another potential leak/electrical/service point.
Use the machine's documented settings menu for user-adjustable functions, but do not treat a hidden/service menu as a maintenance feature unless the current De'Longhi instructions explicitly document it for your exact model.
Key takeaway: modify only to solve a defined problem, keep a rollback path, and judge long-term ownership by condition—not a universal “modded Dedicas run for years” claim.
Related espresso machine guides
Dedica EC685 modding FAQ
Can I use a 58mm basket in my Dedica?
Do not assume a generic 58 mm commercial basket will fit a Dedica. Use a basket/portafilter explicitly specified for the exact Dedica model and confirm bayonet/rim/depth fit before buying.
What's the best grinder for a modded EC685?
There is no HBM-tested three-model winner. A non-pressurized Dedica workflow needs an espresso-capable grinder with fine, repeatable adjustment. Compare adjustment range, retention/exchange, workflow, serviceability and the coffee you actually use.
How do I know if my Dedica needs descaling?
Use the EC685's documented descaling alert/procedure and current De'Longhi support instructions. Do not rely on HBM's old claim that a specific LED color plus two rinse tanks and a MAX-line float sequence applies universally to every EC685 revision.
Can I leave the Dedica on all day?
Use the standby/auto-off options documented for your exact machine and region. HBM does not have evidence that one fixed 30-minute setting maximizes component life across every use pattern.
How do I know if my dimmer mod is stalling the pump?
If a community pump-control modification makes the pump silent, erratic or unable to move water, stop using that modified setting and return to a known safe configuration. Do not add a resistor or alter mains wiring from a generic FAQ. Diagnose the exact dimmer/pump circuit with appropriate project documentation or qualified electrical help.
