Gaggia Classic mods: how far can I push this machine?

The Gaggia Classic family spans multiple boiler, OPV and control revisions. Treat the model code and region as the first compatibility check, not the pump's maximum rating.

On the current U.S. Classic Pro E24, Gaggia lists a 15 bar Ulka pump and a separate 9 bar OPV calibration. Those are different specifications. Earlier Classic / Pro / Evo machines can use different pressure hardware, so a spring or OPV change is not an automatic first step.

This page now routes the decision: identify the machine, measure or diagnose the symptom, then open the dedicated pressure, PID, maintenance or Gaggiuino guide if that path is actually relevant.

Why does the Gaggia Classic take mods so well?

The Classic family has a large owner community, a 58 mm accessory ecosystem and many years of documented service and modification work. That makes parts and community knowledge easier to find than on many compact home machines.

The important limit is version drift. Boiler material, OPV hardware, switchgear and region-specific specifications change across the family. A modification that makes sense on an older Classic Pro may be unnecessary or incompatible on a current E24.

Key takeaway: use the family name to find the right documentation, then use the exact model/revision to choose the actual modification.

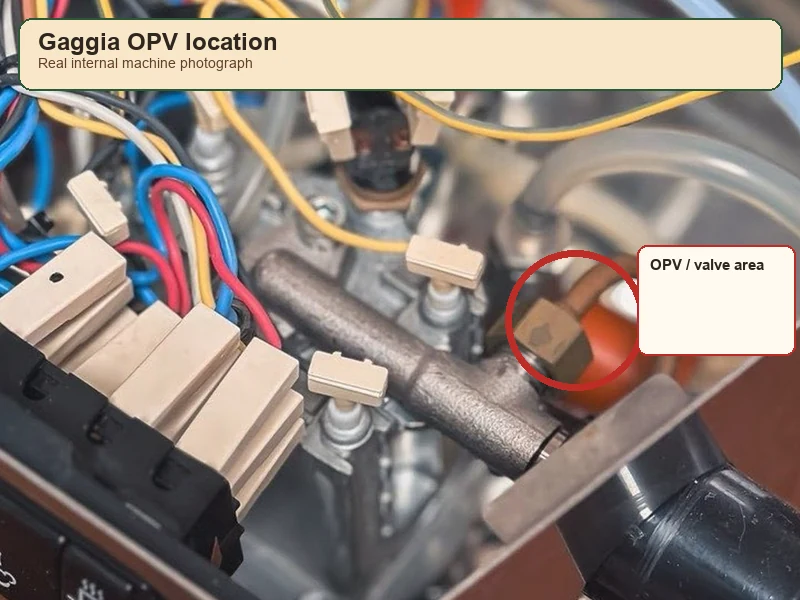

Do I need to drop my OPV from 15 to 9 bar?

Not automatically. A pump's maximum rating is not the same thing as the machine's regulated brew pressure. Gaggia North America currently lists the U.S. Classic Pro E24 with a 15 bar Ulka pump and a separate 9 bar OPV calibration.

Earlier Classic / Pro / Evo machines can use different OPV designs and may benefit from measurement or a model-specific pressure change. Do not buy a spring because the pump label says 15 bar.

Key takeaway: identify the OPV hardware and current pressure setup first; treat 9 bar as a model-specific target, not a universal spring prescription.

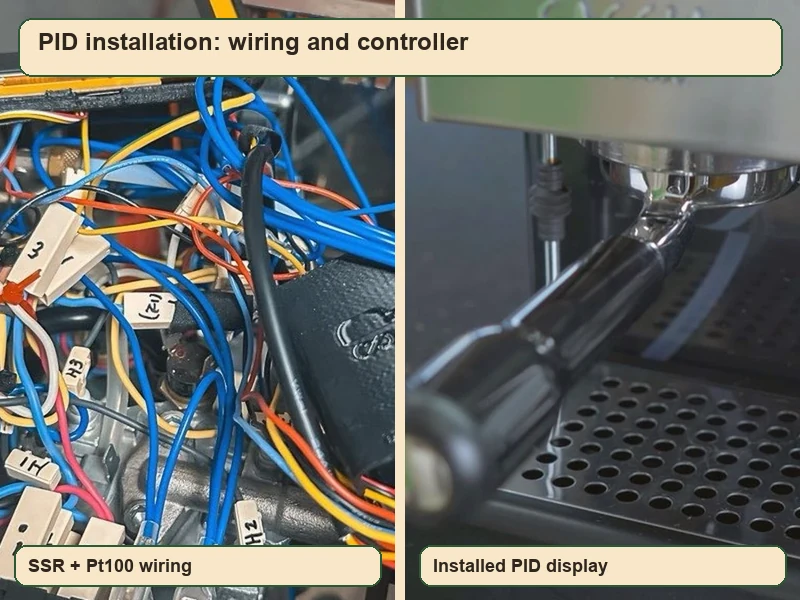

Do I need a PID on my Gaggia Classic?

A PID is an aftermarket temperature-control path, not a required upgrade for every Classic owner. It is most relevant when temperature repeatability is the problem you are trying to solve and you are comfortable with the installation scope.

Different kits use different sensors, relays, connectors and regional mains-voltage arrangements. This overview intentionally does not publish a universal terminal map, wire gauge or controller setting.

Key takeaway: choose a PID because you need better temperature control—not because a fixed temperature-swing number was quoted for every Classic.

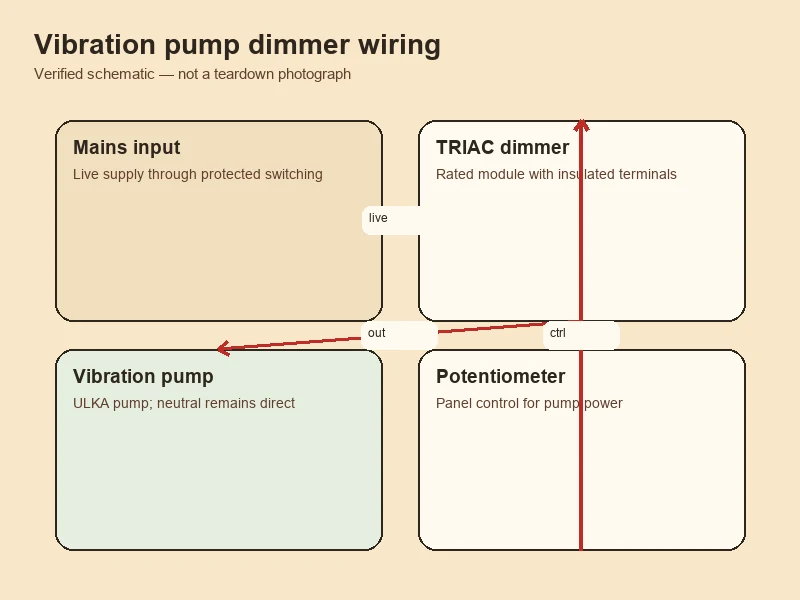

Can I add pre-infusion to a Gaggia Classic?

Community projects use several approaches to change pump ramp, flow or pressure behavior, including analog pump-control modifications and full controller projects such as Gaggiuino. These are not equivalent and they do not share one universal wiring diagram.

Before modifying the pump circuit, separate the goal: gentler initial wetting, manual pressure control, or a full closed-loop controller. Then verify the exact pump/control hardware and region voltage.

Key takeaway: define the control problem first; do not treat a dimmer, PID and Gaggiuino as interchangeable “pre-infusion mods.”

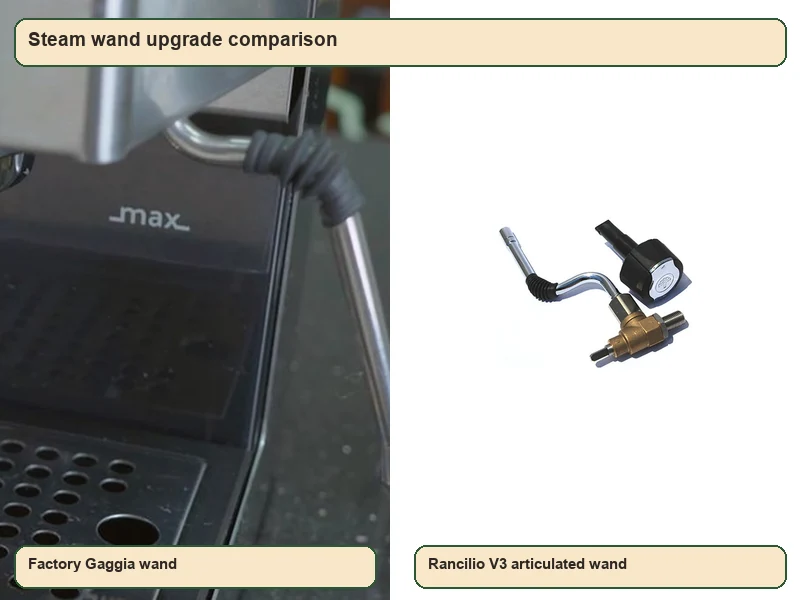

How do I get microfoam from a Gaggia Classic?

Steam hardware varies across Classic generations. On the current U.S. E24, Gaggia lists a stainless commercial-style wand with a two-hole tip. Older machines can use different wands and tips.

Start with machine condition, steam temperature/recovery and technique before assuming a wand transplant is required. If you change a wand or tip, verify thread, valve and clearance against the exact machine. For generation-specific buying checks, use the Gaggia Classic steam wand upgrade guide.

Key takeaway: identify the stock steam hardware first; a cross-brand wand conversion is not a universal first upgrade.

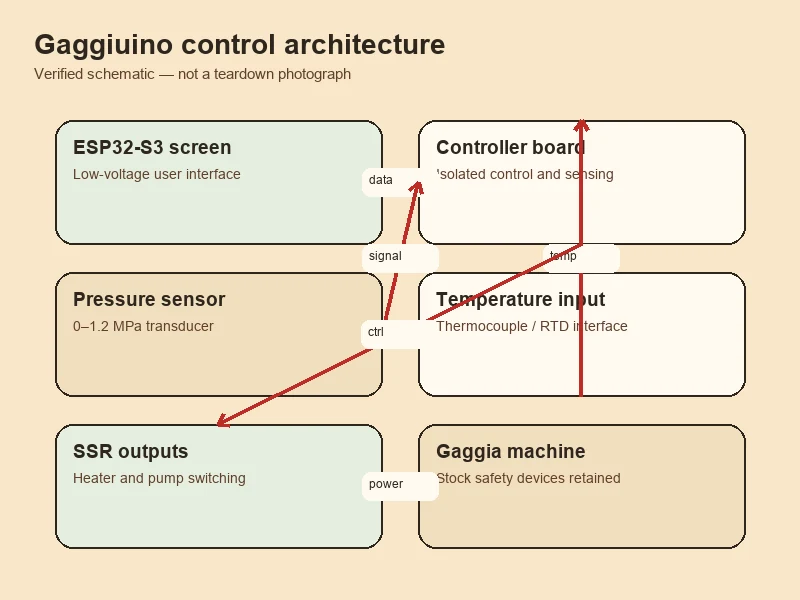

Is Gaggiuino worth the full rebuild?

Gaggiuino is a community control project that can replace or augment several stock functions. It is a much larger commitment than adding a single accessory or external workflow tool.

Use the current project documentation to check supported hardware, PCB generation, sensors, display and machine revision. HBM should not turn an old parts list or community wiring snapshot into a universal build recipe.

Why is my bottomless portafilter spraying?

A bottomless portafilter makes distribution and channeling easier to observe, but it does not diagnose one cause by itself. Grind, dose, basket fill, distribution, tamp level, screen condition and machine pressure can all change the pattern.

Use a portafilter that is confirmed to fit your exact Classic and change one variable at a time. Do not infer “15 bar” from spraying alone.

Key takeaway: use the bottomless view as evidence, not as a reason to jump directly to an OPV spring or a new grinder.

Why does my pump run but no water comes out?

No-flow symptoms can come from an empty/air-locked water path, pump or inlet problems, scale, a blocked valve, or another service issue. Do not assume one cause from the sound of the pump alone.

Start with the non-invasive checks in the diagnostic flow, then use the machine-specific cleaning or service procedure if the evidence points to a blockage.

Should I worry about Boilergate on an Evo Pro?

Some Classic Evo Pro owners reported black flakes associated with the coated-boiler controversy. The correct response depends on the exact machine, boiler revision, region and the material actually observed.

This overview does not diagnose flakes by appearance or make toxicology claims from forum photos. Use the dedicated evidence page for the documented issue, inspection steps and current replacement paths.

How far can a modded Gaggia Classic really go?

Modifications can change temperature control, pressure behavior, workflow and serviceability, but HBM does not have controlled evidence that a modified Classic is equivalent to a commercial multi-boiler or a Decent DE1.

Judge the project by the problem it solves, the reliability of the installation and whether the machine still fits your daily workflow. A simpler, well-documented change can be more useful than stacking every available mod.

Key takeaway: build toward a defined goal, not toward a claim that one Classic can become every other machine.
